Vertical-sign detection, pass 1: measure before you tune

2026-08-01 · AI3D-339 · A4_5 corpus (143 segments) · post-deep-research implementation queue (handoff items 1–5) · all instruments label-free · compute on battlebox

TL;DR. Pass 1 built the measuring instruments the detector never had, and they immediately earned their keep: the project's first recall number (ceiling ≈0.74 overall, and a previously unknown defect — sign detection is so density-fragile that two half-data runs never find the same sign); a new transient-vs-static FP taxonomy with a shipping feature (record_coverage_ratio) that flags 5/6 transient FPs at an 8.7% base rate; a census showing 3 thresholds block 433 near-miss clusters (the pass-2 triage pool); and two clean discards — the plate-orientation cue (measured dead) and 3 of 4 seed-gate relaxations. One infrastructure finding: out_final is no longer reproducible from master (the shipped RF verifier post-dates it) and must be re-baselined before the next census. No detection quality was changed this pass — deliberately. Every default stays; pass 2 spends the new instruments on actual improvements.

What went well

Instruments over knobs. All four deliverables are measurement tools; every one produced a finding that redirects pass 2 away from something we would otherwise have wasted effort on.
The additive-only discipline held. The feature work ships with a byte-identical regression gate on all 44 pre-existing CSV columns (verified twice, including after deletion cleanup); 237 unit tests pass.
Skeptical-by-default worked. Two ideas died by measurement, not opinion: the plate-normal orientation cue and the seed-span/min-points relaxations. Cheap deaths — each cost hours, not a shipped regression.

What didn't

Handoff item 4's premise was wrong. The plate-normal-vs-road-tangent scalar assumed verge strips / road paint / guardrail tops are extended planes. Measured: they are metre-scale blobs (planarity ratio 1.2–1.8); the scalar's distribution is identical whether the normal is well-defined or noise (medians 0.181/0.182/0.180 across planarity strata). deleted
The recall number is softer than hoped. Split-half capture–recapture with one detector is a capture-overlap completeness index, not unbiased recall (positive dependence pushes it optimistic; half-data thinning pushes the other way). Literature check (Chao et al.) confirms. Reported as ceilings, useful mainly for relative comparisons.
Baseline drift found late. out_final predates the shipped RF verifier; master vetoes 3 of its accepts (all QC-confirmed FPs — the verifier is right), and a fresh default sweep drifts further (79/16 vs 88/30 delineators/signs). Every diff-vs-out_final this pass carries that caveat; re-baseline queued before pass 2's censuses.
Delegate wrangling cost real time. Two runs died by premature backgrounding and one timed out with zero output before escalation to a stronger model succeeded.

Threshold-margin census (item 3)

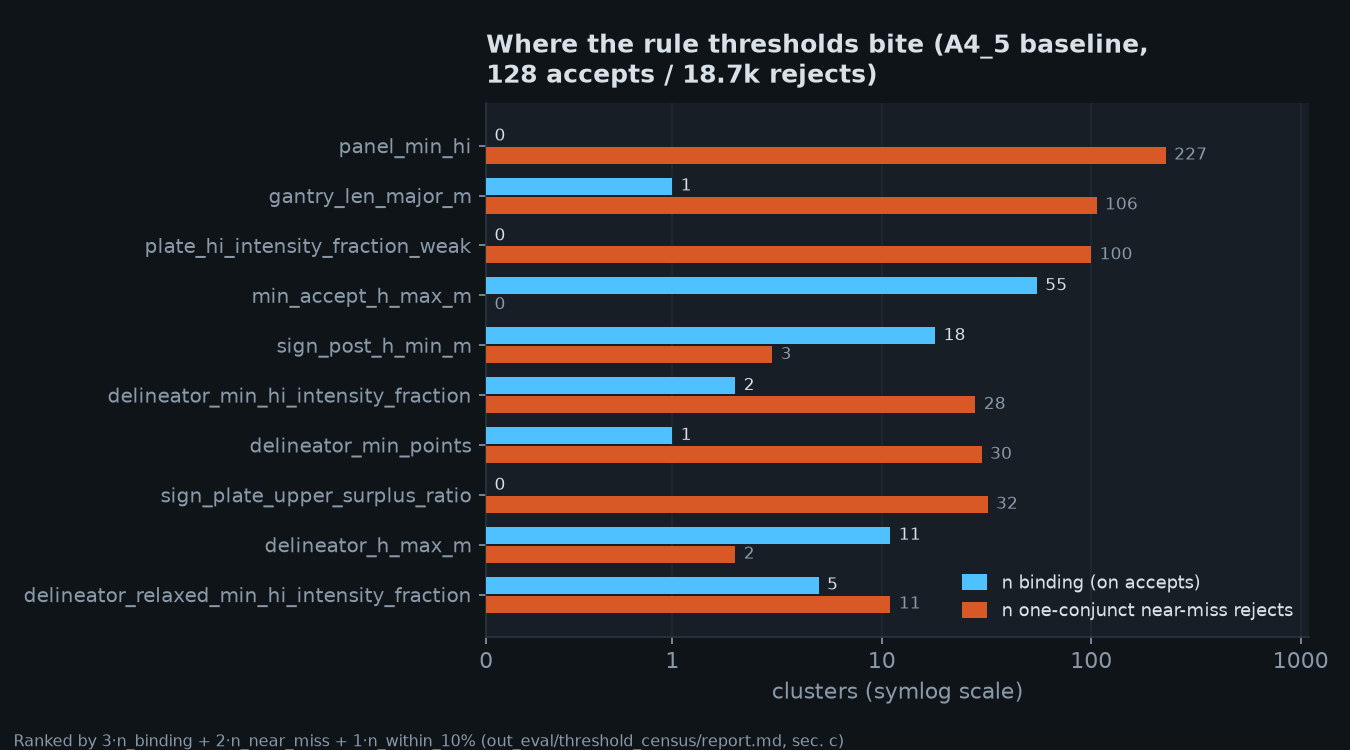

Accept-side binding pressure vs one-conjunct near-miss rejects, top 10 thresholds. Symlog x-axis.

min_accept_h_max_m=0.9 is the workhorse gate: binding constraint for 55 of 127 reconstructible accepts.
Three thresholds block huge near-miss pools while binding almost no accepts: panel_min_hi (227), gantry_len_major_m (106), plate_hi_intensity_fraction_weak (100). These 433 one-conjunct rejects are the pass-2 auto-annotation triage pool — render crops, judge with vision agents, find whether any real signs are single-threshold-blocked.
18 config thresholds are fully inert on this corpus; ~9 conjunct families (row rejection, gantry pairing, ML veto…) are uncoverable from CSVs and stay unmeasured.

Record-multiplicity + planarity features (items 2, 4)

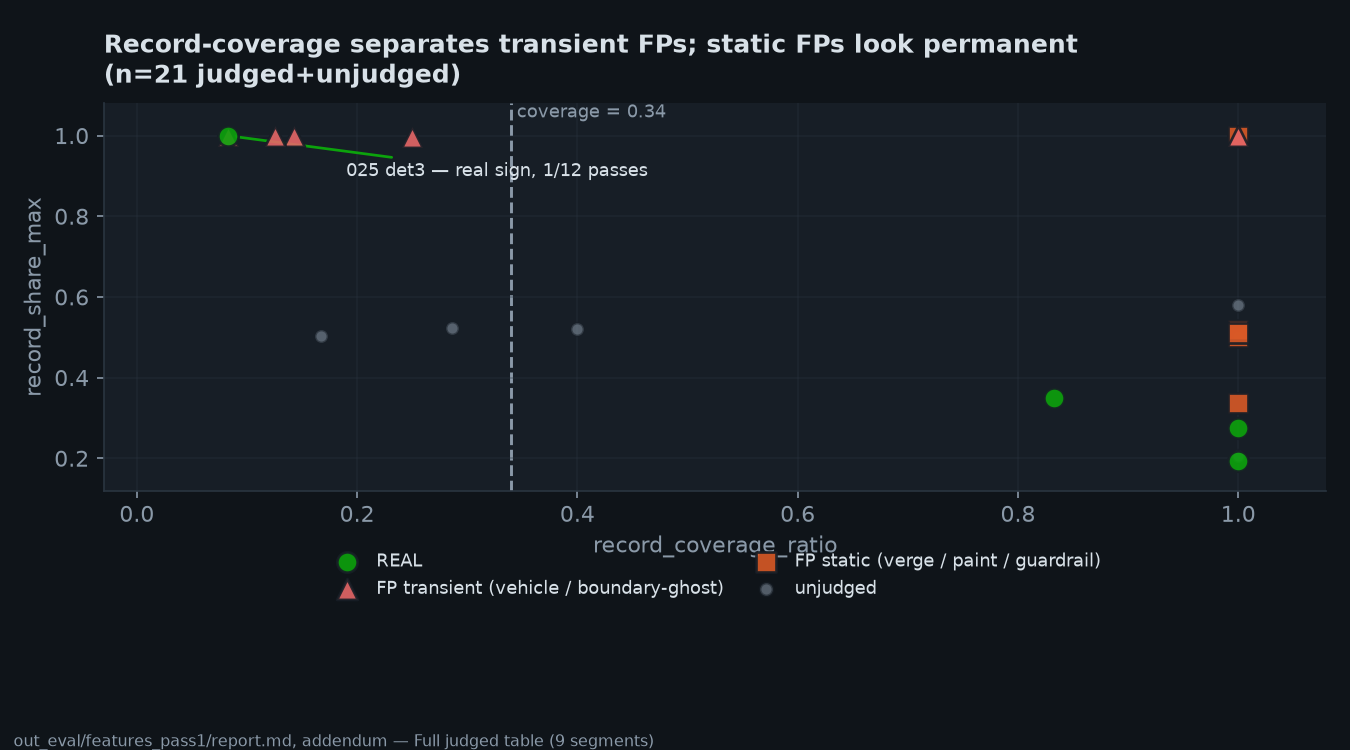

The transient/static FP split. Transient FPs (vehicles, boundary ghosts) cluster at low coverage; static FPs (paint, verge, guardrail top) sit at coverage 1.0 among the reals.

shipped Six appended clusters.csv columns (additive-only, uncommitted → now committed): 4 multiplicity fields + plate_planarity_ratio. record_coverage_ratio (passes-that-saw-it / passes-that-could-have) flags 5/6 judged transient FPs at a 8.7% base rate, neutralizes the one-record-segment confound, and correctly ignores static clutter.
not a rule yet 1 of 4 judged reals is also flagged (a confirmed sign seen by 1 of 12 passes). Next measurement: coverage-ratio distribution over the full 143-segment accepted set, transient-family candidates only.
Taxonomy result: multiplicity is a transient detector; the static FP family (paint/verge/rail-top) is misclassification and needs shape/context cues — the two families need different weapons.
deleted plate_normal_costan + the corridor tangent estimator — measured dead (see "What didn't").

Label-free recall instrument (item 1)

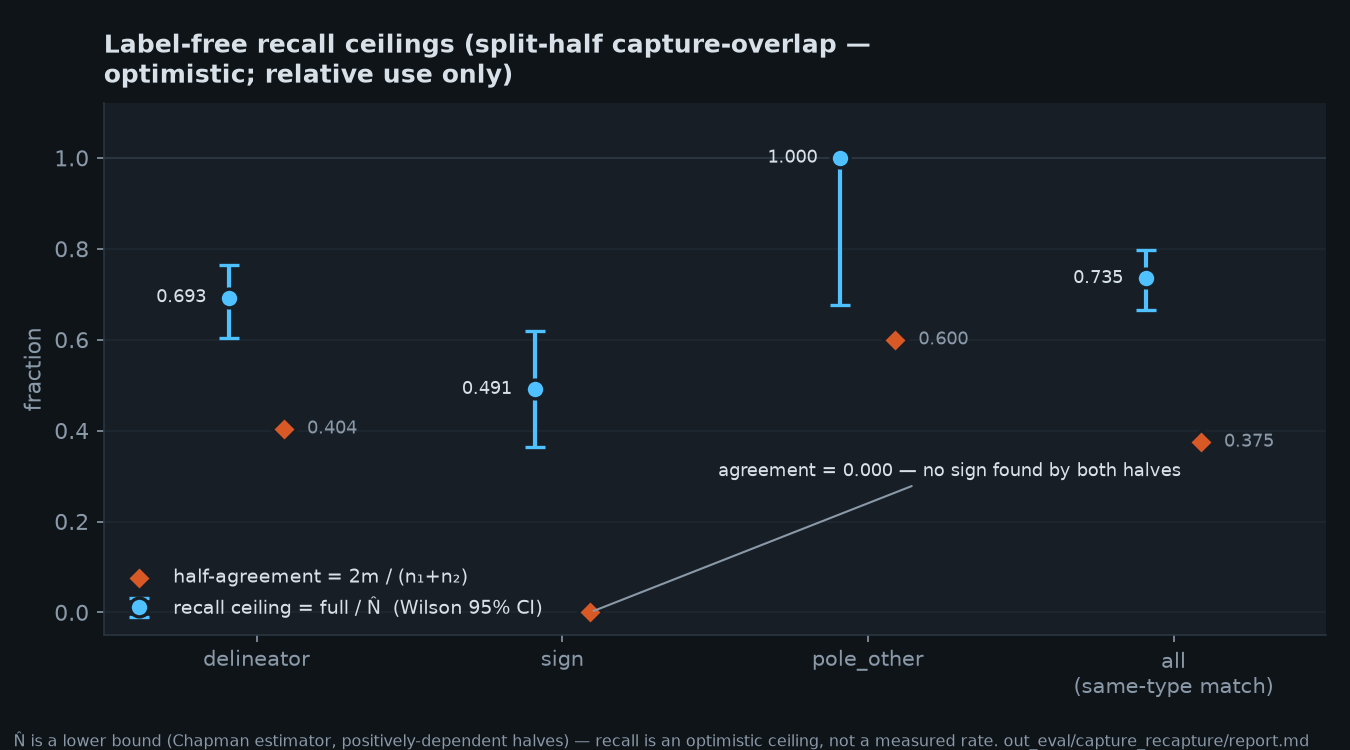

Recall ceilings (optimistic; relative use) and cross-half agreement per type. 126/143 segments usable; 17 single-record segments excluded.

Overall ceiling 0.735 [0.665, 0.797]; delineators 0.693; signs 0.491.
The sharp finding: sign agreement = 0.000 — halves found 7 and 6 signs, none matching (27 in the full run). Sign detection (plate evidence) collapses under point thinning. This is a robustness defect measurable and fixable without labels.
24 cross-half consensus detections dumped — the first auto-label seed. 6 of 123 full-run detections are single-record (fragile tail, first QC targets).
Instrument upgrade queued (research-informed): per-pass independent redetection with capture histories instead of half-splitting; report as completeness index with dependence warning.

Seed-gate sweeps, FP-first framing (round-4 suspects)

Variant	Gains (free/railed side)	Verdict
brightness p98→p95	33 / 19	judge in pass 2 — the load-bearing knob; free-side gains are well-sampled (median 995 pts)
span 0.80→0.65	3 / 0	discard — negligible
min_points 300→150	2 / 2	discard — admits exactly the under-300 reject class
combo	39 / 26	discard — brightness + min-points bleed-in

Framing per the retracted recall gap: census gains are FP candidates until an overlay says otherwise; gains on guardrailed sides are near-certain FPs. 50 intensity overlays fetched for the judging pass (agent-first, then Miro only if ambiguous).

Research step (Codex, web)

Full memo: out_eval/research_pass1_memo.md (5 questions, ~30 sources). Highest-value takeaways: (1) per-pass independent redetection + capture-history vector is the literature-standard form of our coverage idea (You et al. NeurIPS'22 persistence prior, Barnes/Maddern self-supervised distraction removal); (2) the static-FP family wants height-sliced footprint topology, road-station continuity, and surface-conformality cues — all label-free; (3) our Chapman use needed the dependence caveat it now carries; (4) the auto-label path is abstaining labeling-functions → probabilistic label model → PU-learned verifier with road-section isolation; (5) German RPS/VwV priors are quantifiable: 50 m Leitpfosten lattice 0.5 m off the paved edge at ~1 m height, sign lower edge ~2 m at ~1.5 m lateral, gantry clearance ~4.5 m — usable as soft likelihoods, not hard gates.

Pass 2 queue (ranked)

Re-baseline out_final with current master (verifier on) — prerequisite for every future census. Then freeze the A1 "before" baseline (branches 000+001 middle segments, excl. 65–67) for Miro's end-of-goal before/after report.
Vision-judge the pass-1 candidate pools (agent-first): 33 free-side brightness gains + top near-miss families (227 panel_min_hi / 100 plate_hi_weak). Output: auto-labels + a keep/kill verdict on the p95 brightness relaxation.
Static-FP cues: height-sliced footprint topology + road-station continuity + surface conformality (additive features, then rules or LFs).
Sign density-robustness fix: diagnose why plate evidence dies at half density; likely make plate gates density-aware (ratio-based, not count-based).
Weak-supervision verifier (Miro-approved ML without human labels): rules-as-labeling-functions with abstention + consensus/coverage seeds → PU verifier; strict segment-group isolation.
Instrument v2: per-pass redetection capture histories replacing half-split.

Judge-panel status: not convened this pass — no stop condition is plausibly true: improvements clearly remain that need neither human annotations (weak supervision path is open), nor new data (A1/A4_5 unexhausted), and the results are far from perfect (sign fragility, unjudged FP pools). The panel gates stopping, not continuing; it will be convened when a pass ends with a plausible stop claim.

Artifacts

Reports: out_eval/{threshold_census,features_pass1,capture_recapture,recall_sweeps}/report.md, memo out_eval/research_pass1_memo.md, state out_eval/SESSION_STATE.md
Code: 6 appended CSV columns in src/.../detect.py+features.py (+49 tests), tools/threshold_margin_census.py, tools/recall_capture_recapture.py
Battlebox: sweeps under /mnt/d/ai3d-aml/vsigns_eval/; baseline ~/dev/3dai.iolabs.pointcloud.verticalsigns/out_final (drift caveat)
Sibling page: veg-overhang zoom walkthrough (workstream A, same day)
