Vertical-sign detection — pass 7

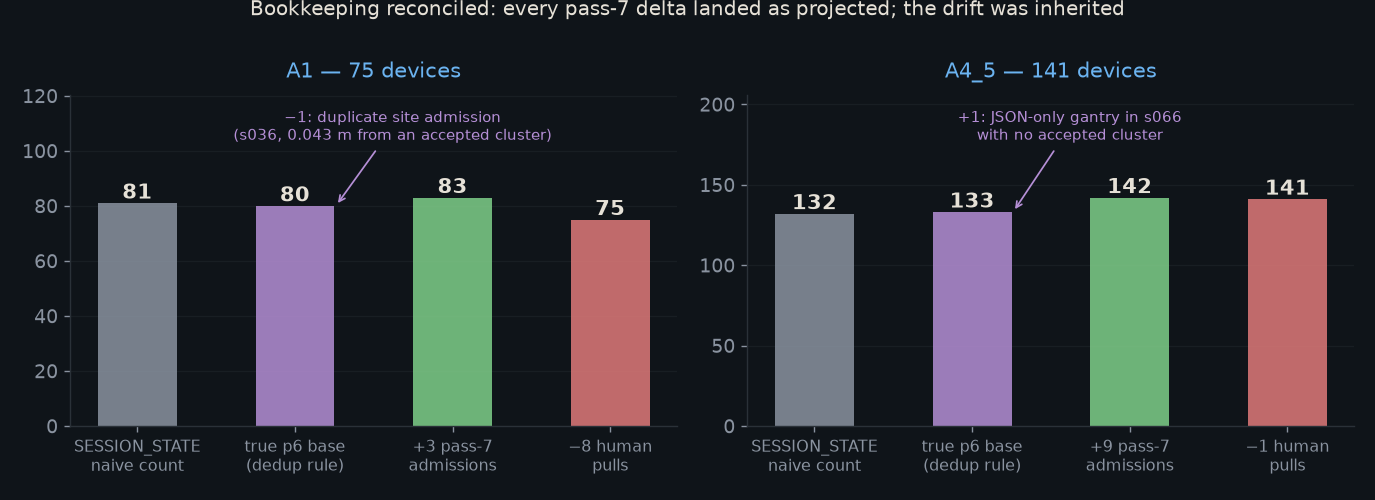

1 · Counts reconciled — A1 75, A4_5 141

Every prior report quoted a device count that nobody could reproduce from the trees. Pass 7 fixed the counting rule first: a device is an accepted row in segment_XXX/clusters.csv, plus any verticalsigns.json detection with no accepted cluster within 0.5 m XY. Neither half alone works — gantry_or_gate clusters emit no JSON detection at all (5 across the corridors), and site admissions never form a cluster, so they live only in the JSON.

Row by row, nothing in the pass-7 CSVs behaved unexpectedly: 3 A1 admissions, 9 A4_5 site admissions, 8 A1 pulls, 1 A4_5 pull — all applied, none skipped, none colliding. The entire A1 −1 / A4_5 +1 drift against the ledger's projection sits in the inherited pass-6 base: a site admission (c2_i17_5x, b0 s036) that is 0.043 m from an already-accepted cluster — the same physical post admitted twice — and a JSON-only gantry detection in A4_5 segment_066 with no cluster behind it.

The build is a four-step idempotent chain over the pristine mask trees (p6 admissions → p7 admissions → s080c5 retype → removals), and the composite is byte-stable: re-running the whole chain leaves both trees md5-identical. Removals must run last — re-applying the p6 admissions after them re-admits s051c47, which pass 7 pulled. The steps are order-independent only as a closed chain.

2 · The holdout burn — first honest test in seven passes

34 A1 segments (b0 000–029 + b1 000/001/009/010) have been frozen since pass 1. Pass 7 burned them once, against a protocol committed before any holdout segment was read: exactly two configs, no re-runs after seeing results, sparse crops (<20k points in r=20 m) flagged UNJUDGEABLE rather than voted on, and success criteria declared in advance.

• BEFORE = commit 95b57ce, the config behind the frozen a1_before_20260801 artifact. Because that artifact covers only the eval slice, the config had to be re-run on the holdout — so it was first validated on non-holdout segment_030, where it reproduced the frozen tree's run_summary.json exactly (seed_cells 14176, clusters 736, origin refinement to 6 decimals).
• AFTER = commit b4ee4cc, byte-identical to repo HEAD src/: pass-6 shipped config + road-context mask + domain guard. No judged-admission overlay applies anywhere — no judge has ever seen these segments, so there is no provenance to overlay. Every raw count is detector output.

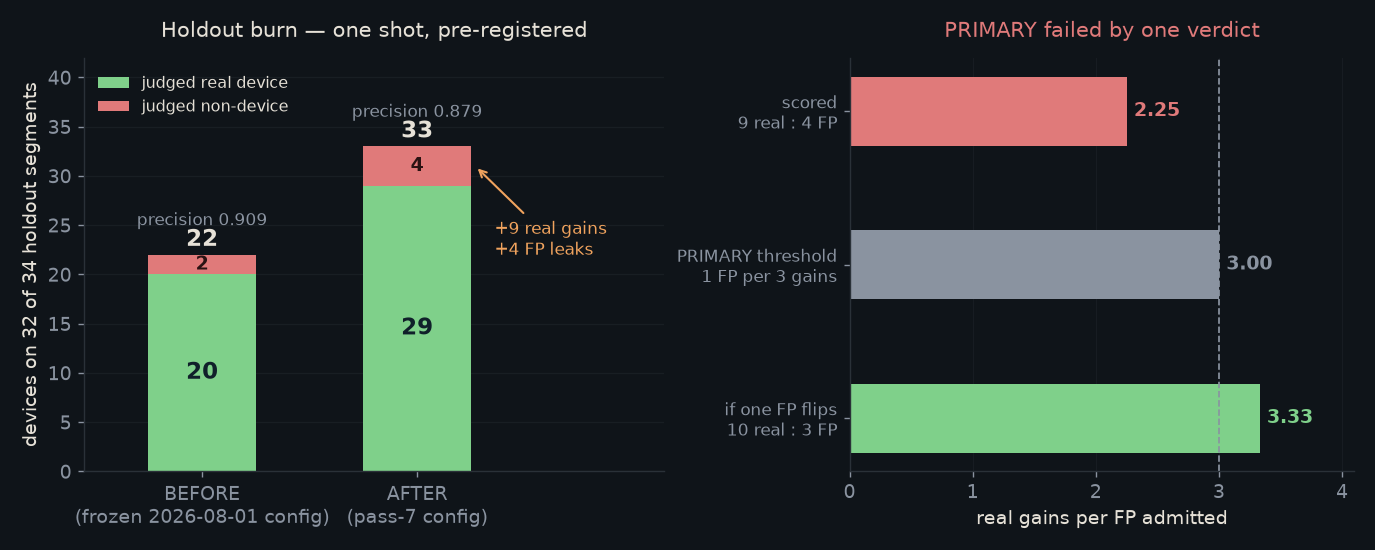

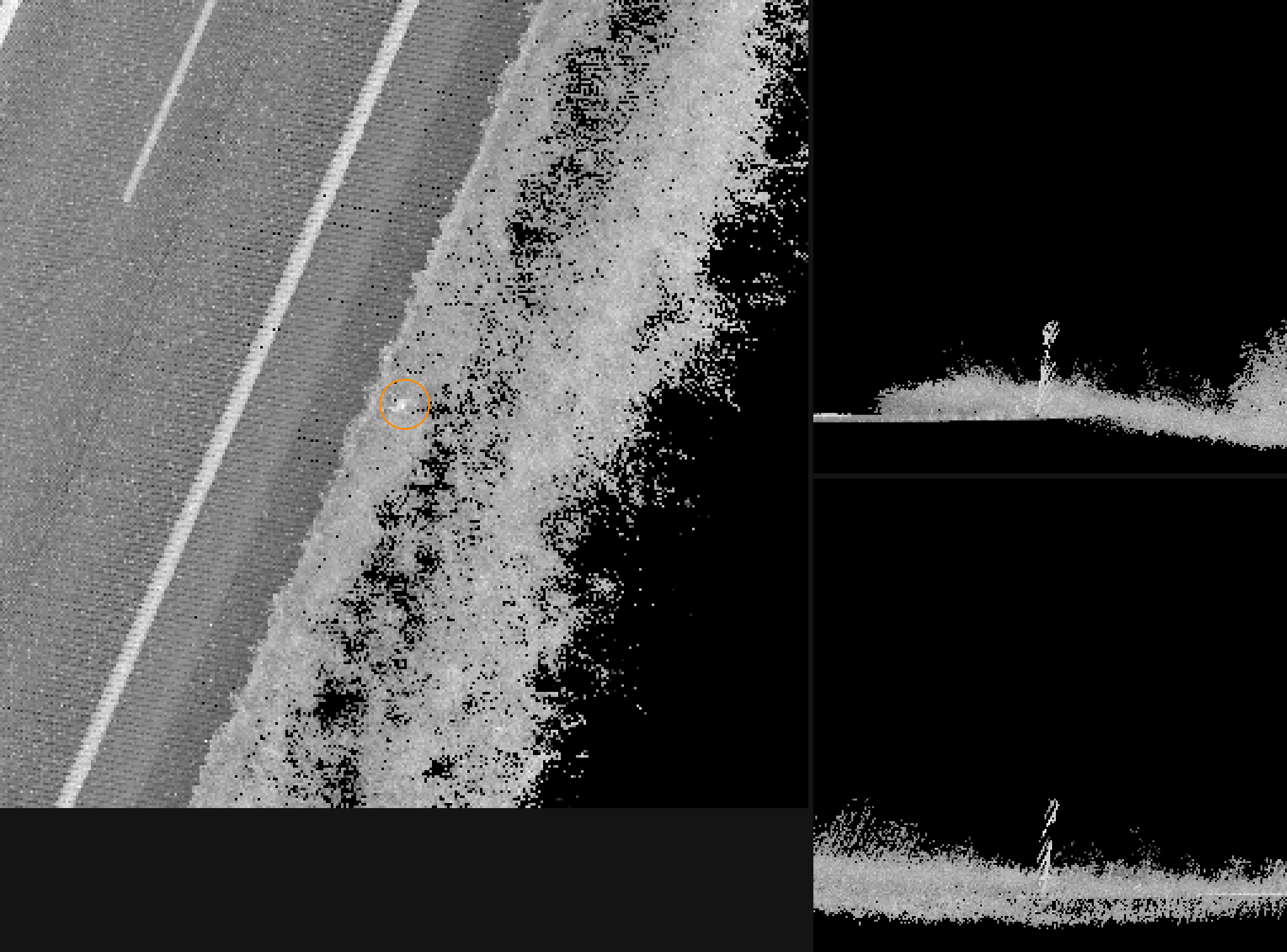

Scored on 32 of 34 segments (2 lost to the OOM regression in §8; BEFORE found 0 devices in both, so nothing was lost from the comparison). 20 devices agreed, 2 BEFORE-only, 13 AFTER-only — every AFTER-only item a delineator, both BEFORE-only items a sign. No item tripped the sparsity rule: the sparsest crop held 1.36 M points against a 20 000 floor.

Judging was the usual adversarial fleet — Opus and Grok independent on all 16 items, Fable tiebreaking 4 disputes by actually viewing the crops. All 4 tiebreaks went to vegetation: Opus's width/saturation calibration was upheld and Grok's roadside-position credulity bit again, exactly as in pass 6.

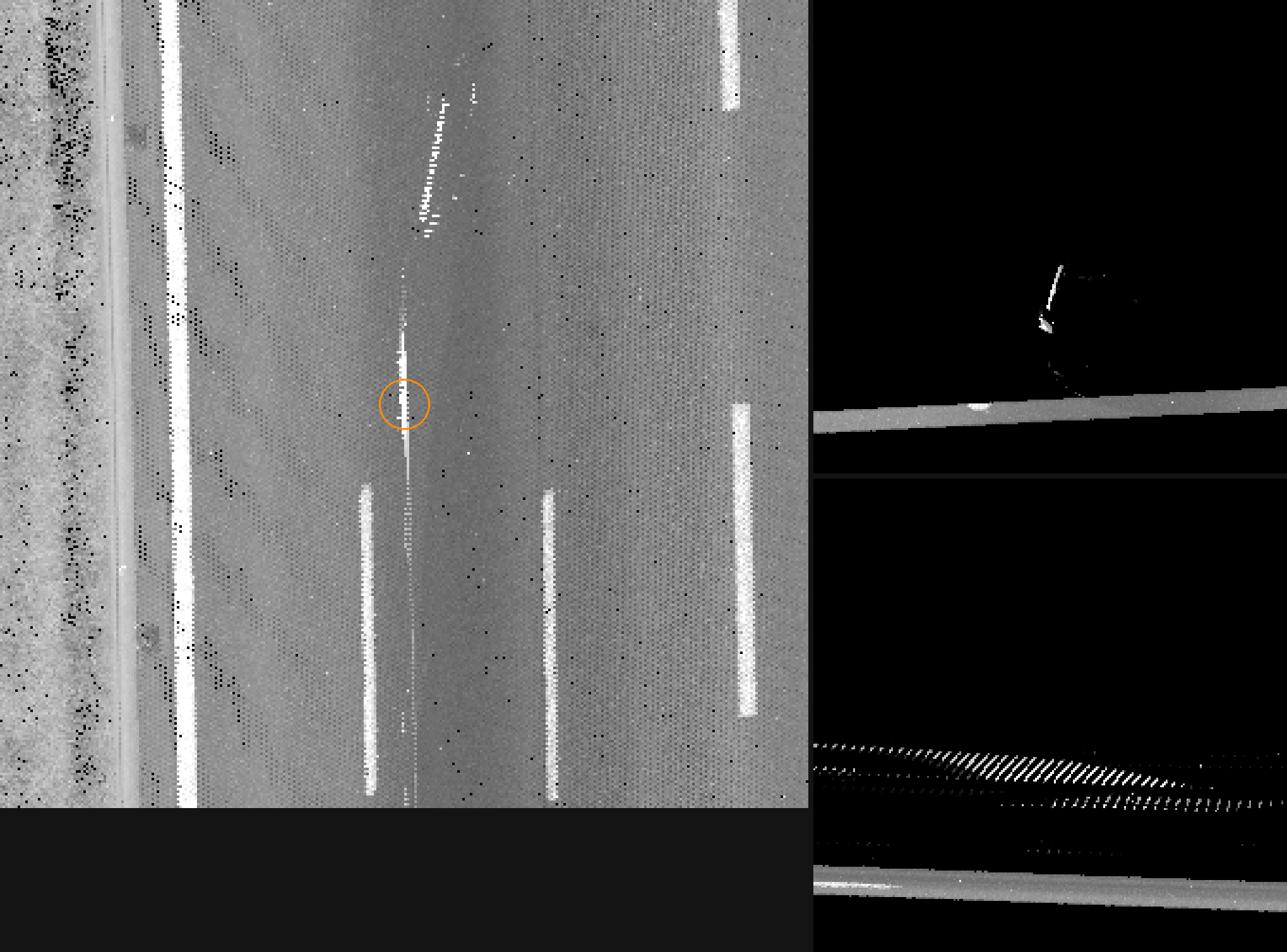

Both BEFORE-only "signs" were non-devices, so BEFORE's precision on its unique finds is 0/2. This one, b0s011c88, is a moving vehicle on the carriageway — smeared single-record returns down the lane, an angular mass floating above the surface. The pass-7 rejections were correct.

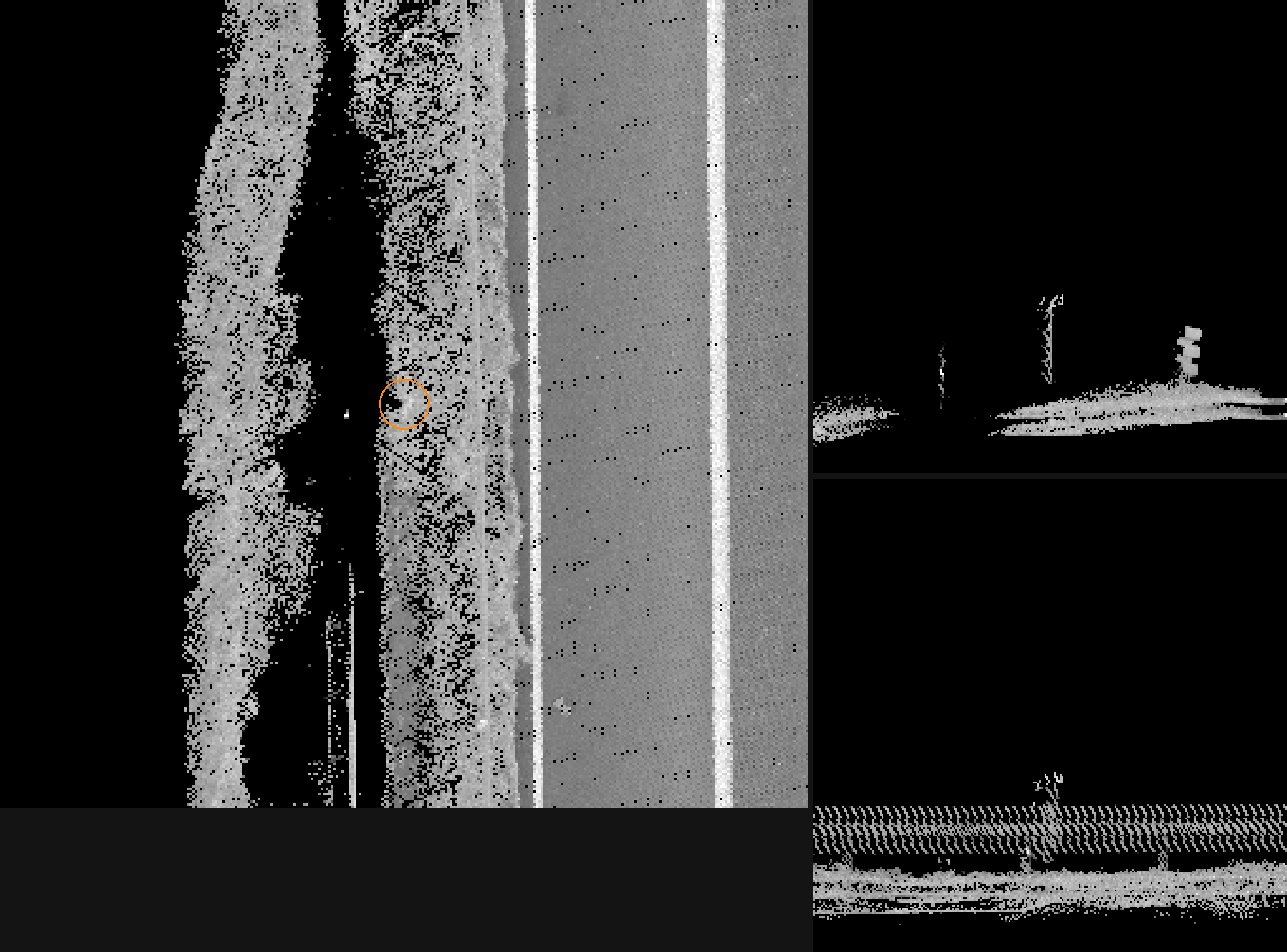

The reading the panel got: the pass-2..7 recall machinery generalizes — 9 real posts that BEFORE never saw, a +45% device count on unseen ground — and the FP direction is now the binding constraint. All four leaks are the same family: slender roadside vertical without a saturated head, the family the judged-admission bar catches on eval slices but the raw detector does not. A candidate rule follows immediately (not shipped, not tuned on the holdout): require a saturated/compact bright head for solo non-rail delineators. It would have killed all 4 FPs at the cost of one real find (s012c188, whose head never saturates) — net 8 gains, 0 FPs, which would have passed PRIMARY. It has to survive label-free eval-slice validation and null controls before it earns a reserve burn.

Also on record: the b1 ramp contributed 0 devices on both sides, so its distinct intensity regime (saturation counts ~100× lower than mainline) never came into play. The holdout is now consumed — no re-reads for scoring. The 46-segment reserve (b0 091–136) is untouched and consumable by pre-registration only.

3 · The human truth wave

Two sessions, both cheap. The first (2026-08-03, 24 cases, intensity-only palette, r=20 m crops) doubled as a blind calibration; the second (2026-08-05) was a re-look built after Miro's feedback — camera RGB + 60 m road context, one-click CloudCompare, ~15 min for 18 cases.

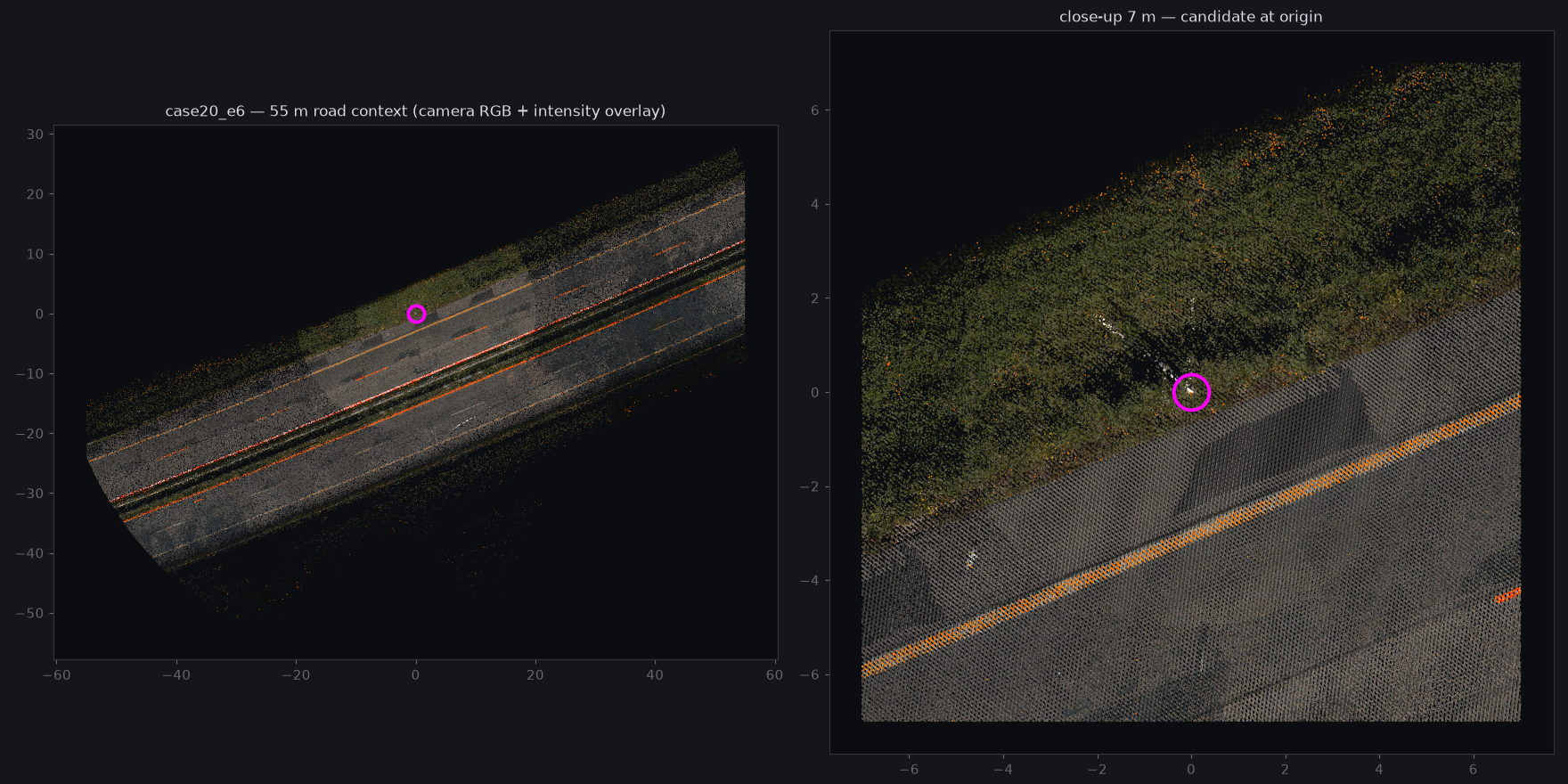

e6 in the re-look package: 55 m of road context in camera RGB on the left, 7 m close-up on the right. Both LLM judges had downgraded it to vegetation at high confidence in pass 6. The human called it a real delineator, HIGH, twice — first at r=20 m, again with RGB and context. It is now admitted. RGB is the reason it is judgeable at all: "very hard to tell with no RGB, just intensity."

The control that overturned

What the humans changed

The gantry pulls matter beyond the arithmetic. All three had been flagged by a report render two days earlier — 4.7–5.7 m tall, 8–9 m long masses on an embankment 20–28 m lateral and 6.5–8.7 m below the lane markings, with no overhead span anywhere. The human confirmed all three as canopy. The gantry_or_gate class on A1 is now zero-confirmed and de-scoped; the three A4_5 gantry items remain unaudited — Sol flagged that gap as the reason the panel dossier's "all reconvene conditions met" was too strong.

Two standing rules came out of this

• Authority ladder. Human HIGH-confidence = truth apex, overrides the whole LLM stack. Human MED + a standing LLM false-positive verdict = pull authority (two independent non-device calls). Human LOW = note only, roughly LLM-grade. Med-conf is demonstrably fallible — ctrlB was a med-conf call on a genuinely hard case.
• One-way glass. Human verdicts may change ground truth, veto admissions, and evaluate rules post hoc. They may never enter a fitting objective or a model-selection loop — n=24, adversarially selected, a biased tail by construction. Every human label so far has been used as a judge, never as training data. Zero human training labels exist in this project.

The measured bias the humans exposed: the LLM stack over-calls vegetation on ambiguous roadside verticals — four overturns now (e6, i11, s053c57, and ctrlB in the other direction). That is precisely why Opus flagged the holdout's 4 "vegetation FP" labels as stack-generated and put human adjudication of them at the top of the pass-8 queue.

4 · A4_5 site probing — 155 sites, 0/53 controls

A1 was depth-exhausted after pass 6, but A4_5's lattice chains had never been probed. Regrowing them corridor-wide produced 155 sites: 52 interior gaps, 50 extrapolations, and 53 phase-shifted controls — controls interleaved so the probe cannot know which is which. The pass-6 raw-point signature probe was run at every one, with the road-context prefilter in front.

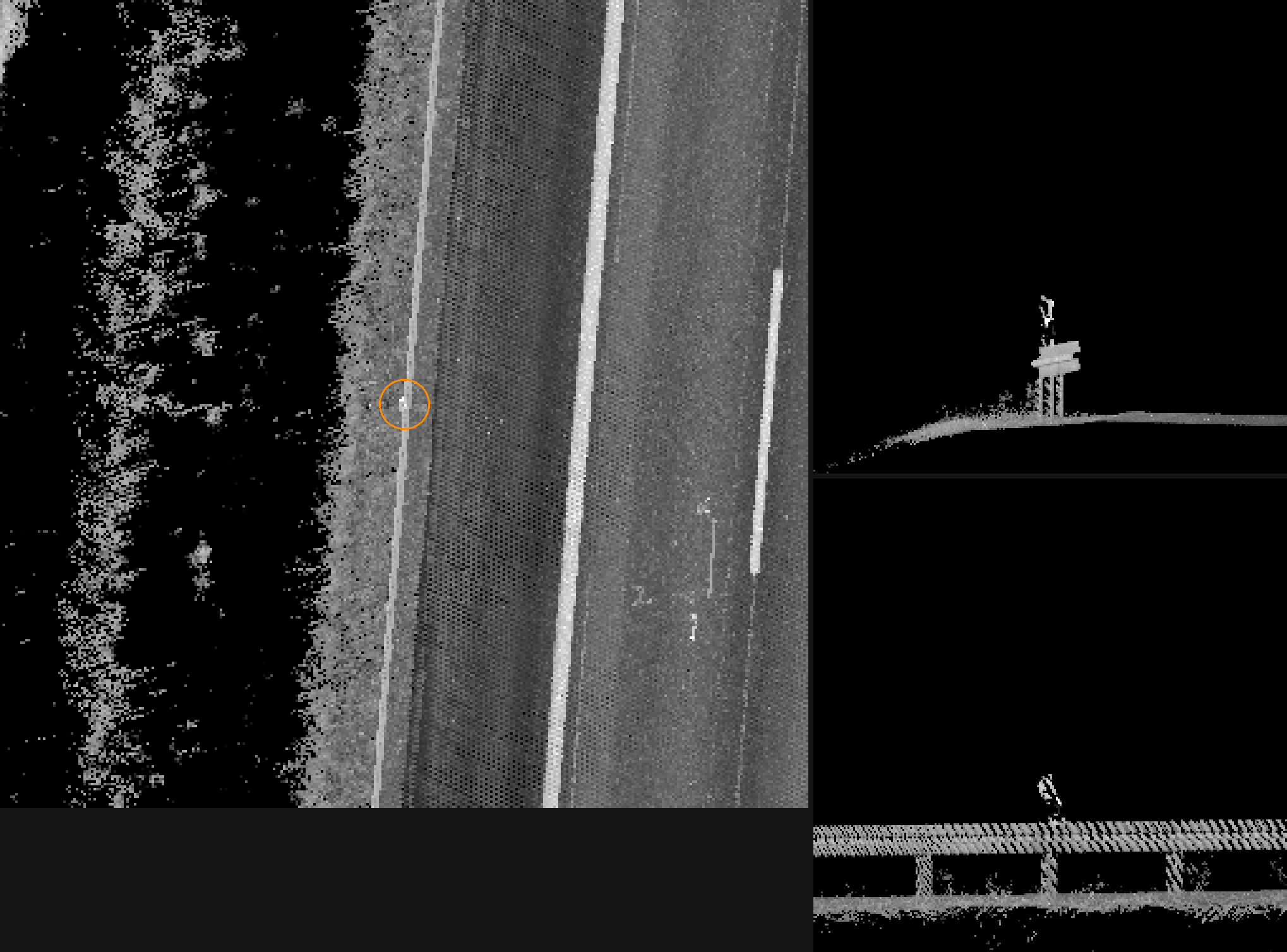

c1_x126_1 — one of two new rail_half_post devices. The elevation panel shows the W-beam guardrail cross-section with a 0.44 m bright-tipped stub rising above the rail top, saturating at 65535. This is the Aufsatzleitpfosten class: ~91% of A4_5 is railed, freestanding shape gates can never catch these, and there is no published MLS detector for them. A rail-relative search — extract the rail, then look for short vertical attachments in rail coordinates — is the last big recall lever, researched in pass 7 and still unbuilt.

5 · Honest recall — and the caveat stack that comes with it

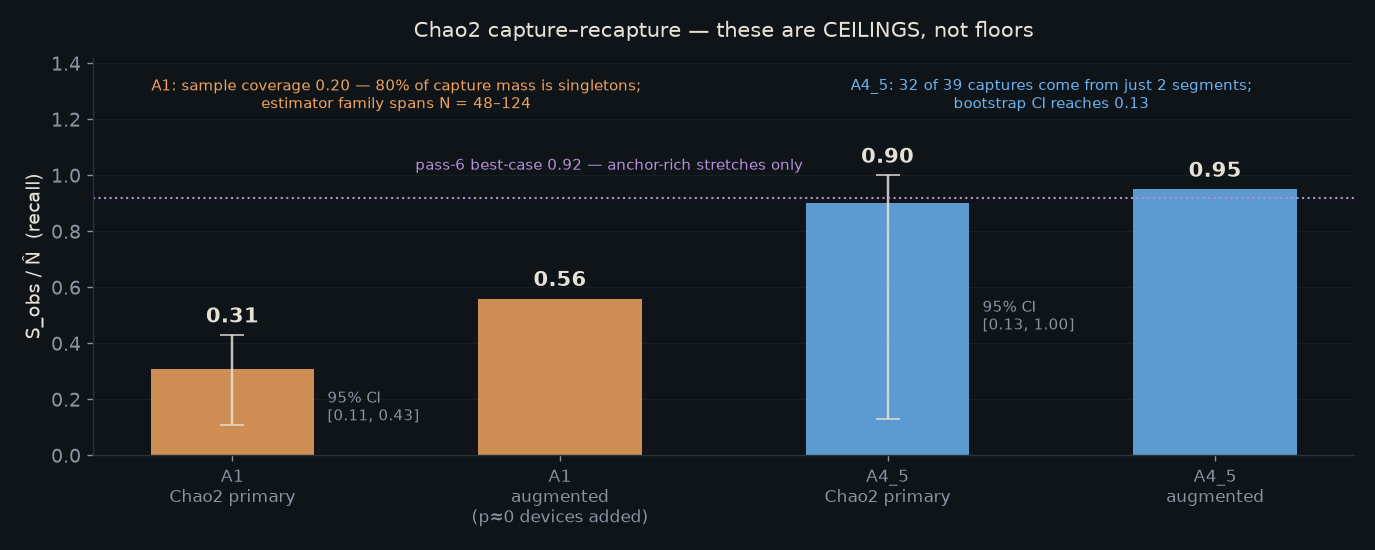

Recall has been the unmeasured defect since pass 1. Pass 7 finally measured it, and the honest answer is uncomfortable. Design: an occasion is one drive (one run3 record), never a spatial block. For every segment the detector was re-run once per record with only that record feeding candidate accumulation, while the ground DEM and road corridor were still built from the full record list — so an occasion measures a single pass's detection ability, not its context availability. 1220 single-drive detector runs across 166 jobs, all exit 0. Segments are used only as bootstrap resampling units.

• A1 is instrument-weak, not just low. Good–Turing sample coverage 0.20 means 80% of the capture mass sits in singletons; Chao2 is a wild extrapolation in that regime. Report A1 as a range, never a point.
• A4_5's tight point estimate is more fragile than it looks. 32 of its 39 captured devices come from two segments (132 and 134). The block bootstrap correctly exposes this — the CI reaches down to 0.13. The 0.90 describes those dense delineator rows, not the corridor.
• The friendliest defensible reading credits the detector with every device the fused run found: augmented recall 0.56 (A1) and 0.95 (A4_5). Even that is optimistic — and against the 0.92 measured on pass-6's anchor-rich calibrated stretches, it is the clearest statement yet that the best-case stretches were never the corridor.

The caveat stack is recorded in full, because the number is only as honest as its caveats: the single-drive protocol is a degraded survey, not a replicate (min_points=300 is tuned for the fused cloud, so clusters die on point count — per-drive capture probability is ≈0.05/0.09); novel single-drive detections are mostly artifacts and are excluded from the primary population (34 of 41 A1 novels sit on clusters the full run explicitly rejected, and their type mix is wrong — 20 "signs" among 41, against 12 in the entire A1 baseline); the single_record_transient veto is structurally armed in every occasion (it keys on n_records_present ≤ 1, true for every one-drive cluster — it biases against capture, so it cannot have inflated these figures); occasion labels are per-segment, so no time-effect model is identifiable; effort is unequal (T spans 5–10 and 1–14); and positive dependence between drives remains, which inflates overlap and makes recall optimistic on top of Chao2's own lower-bound property.

6 · The road-context mask, shipped — and honestly a no-op

Pass 6's field-stake trap produced the road-context feature; pass 7 shipped it (commits 989c0e0 + b4ee4cc). Three design decisions, all deliberate:

• Presence gate, not a threshold. The rule asks only whether any saturated returns exist within 15 m — not how many, not how far. Field stakes score exactly 0; roadside scores hundreds to thousands. Tuning a density threshold would have been fitting.
• Domain guard. In saturation-poor segments (<1000 saturated returns in the neighbourhood) the gate disarms itself rather than declaring everything a field object. Coverage noise must not read as evidence.
• Separate class, not a silent drop. Masked rows emit field_stake_row as an experimental class, and clusters.csv gains a roadctx_n_sat column, so the decision is auditable per cluster.

Validation: 209/209 accepted devices across both corridors survive the gate. The mask re-run reproduced the pass-6 accepted-cluster set exactly on both corridors — which is the honest finding: on current detector output the mask is a no-op. Its value is insurance on the admission paths, where the field-stake family actually enters, not a scoring win. Claiming otherwise would be inventing credit.

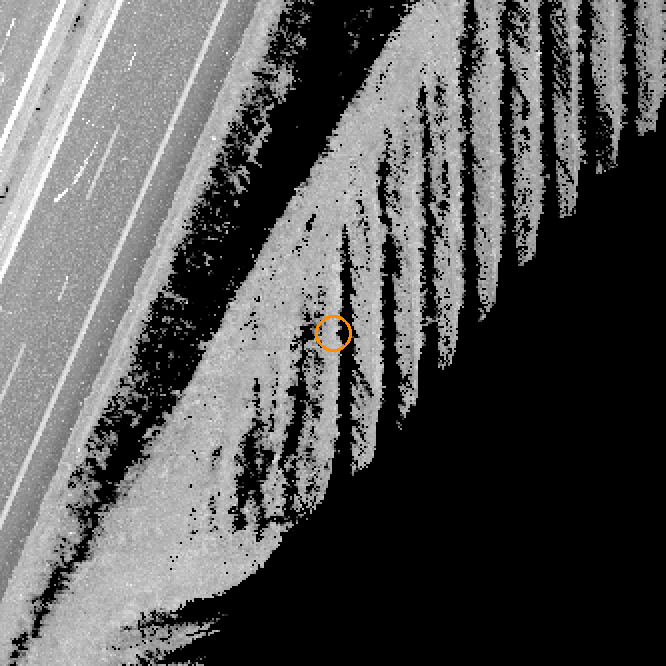

The gate's single holdout firing — b0 s026 c43, and the SECONDARY criterion's whole evidence base. roadctx_n_sat = 0 within 15 m; the candidate (circled) sits ~20 m off the carriageway among vegetation stripes, road at upper left. Critically the domain guard behaved correctly rather than being bypassed: the wider neighbourhood holds 52 812 saturated returns, far above the 1000 floor, so the gate was legitimately armed and the local zero is a genuine reading, not coverage noise — exactly the distinction b4ee4cc was written to draw. Both judges and the geometry agree: vegetation.

7 · Veg-rescreen: the pool is exhausted

Since the humans proved the LLM stack over-calls vegetation, the obvious move was to re-screen pass-6's judged-vegetation rejections for hidden e6-class reals — specifically those that nonetheless passed the raw signature gate. 14 candidates qualified; the road-context prefilter dropped 5 immediately (zero saturated returns inside saturation-rich segments, including a b1 s008 trio that is a field row); a fresh refute-framed Opus+Grok fleet took the remaining 9.

8 · A regression the burn found

crown_circles raises a MemoryError (radius.py via features.py:899) that kills b0 segments 015 and 016 — ~6% of A1 — even run sequentially at 85 GB. It surfaced only because the holdout burn ran the current config over segments nobody had touched since pass 1. It is unfixed. Both dead segments had 0 BEFORE devices so the burn's scoring was unaffected, but a detector that crashes on 6% of a corridor cannot be declared finished — Sol made it a mandatory hygiene item, and it is judge-independent work.

9 · Panel: CONTINUE, 4–0 — and the pass-8 queue

Fable's seat was sealed first (commit 43d7505, before any other seat had read the dossier) to keep the panel from anchoring on the strongest voice. It came back CONTINUE, dissolving the pass-6 STOP-2 dissent on its own terms: the objection was that the truth stack had no human calibration, and human sessions turned out cheap, repeatable and in-loop.

Pass-8 queue (panel-directed)

• 0 · Human session, ~9 cases, BEFORE building anything. Opus's highest-EV move: the 4 holdout "vegetation FP" crops + s012c188 + the roadctx0 item s026c43, bundled with the 3 unaudited A4_5 gantries. This is burn scoring, not a new read — one flip retroactively makes the holdout 10 real : 3 FP and PRIMARY passes. Tooling is proven (~15 min).
• 1 · Fix the crown_circles OOM and re-run the 2 dead segments — completeness only, no rescoring, no holdout reuse.
• 2 · Saturated-head rule: pre-register it, validate label-free on the eval slice (all judged-real solo delineators vs judged-veg; the dimmest real device at imax 50046 bounds the cost) with null controls, ship only if it survives — then one pre-registered reserve-slice burn.
• 3 · Rail-relative half-post search — researched in pass 7, never built. With ~91% of A4_5 railed, it is the last big recall lever. The rail also doubles as a per-segment radiometric reference (galvanized steel, same material everywhere), which is the label-free fix for the intensity rule that failed the A1→A4_5 transfer.
• 4 · Optional: per-record imax dynamics as a retroreflector test (reflector = high record-wise dynamic range; vegetation and stakes are Lambertian-flat).

Then reconvene. Directions now formally closed and not to be re-proposed: Chapman capture–recapture, the imax≥54k rule (transfer-fails), zbin_count_cv, the scalar RF verifier (AUC ceiling 0.73), the guarded lattice fixpoint, spacing-as-evidence, saturation counts as radiometric anchors, veg-rescreen of judged rejections, and A1 chain-site probing.

Baselines: p7_final_a1 (75) / p7_final_a45 (141) on battlebox · holdout consumed, reserve b0 091–136 intact · instruments in out_eval/pass7/ · zero human training labels · reports: pass 6 · pass 5
